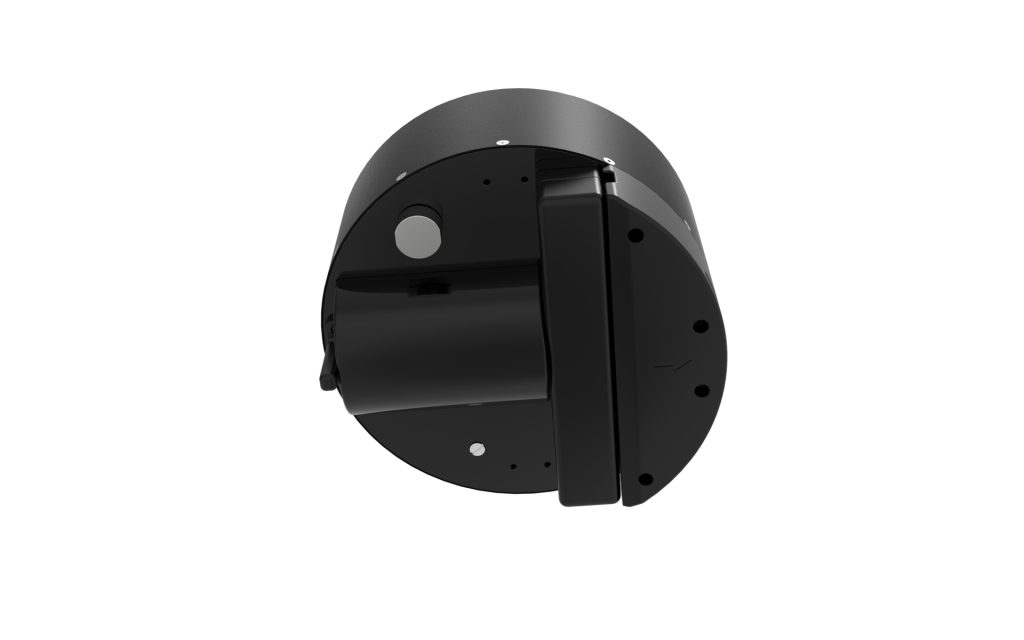

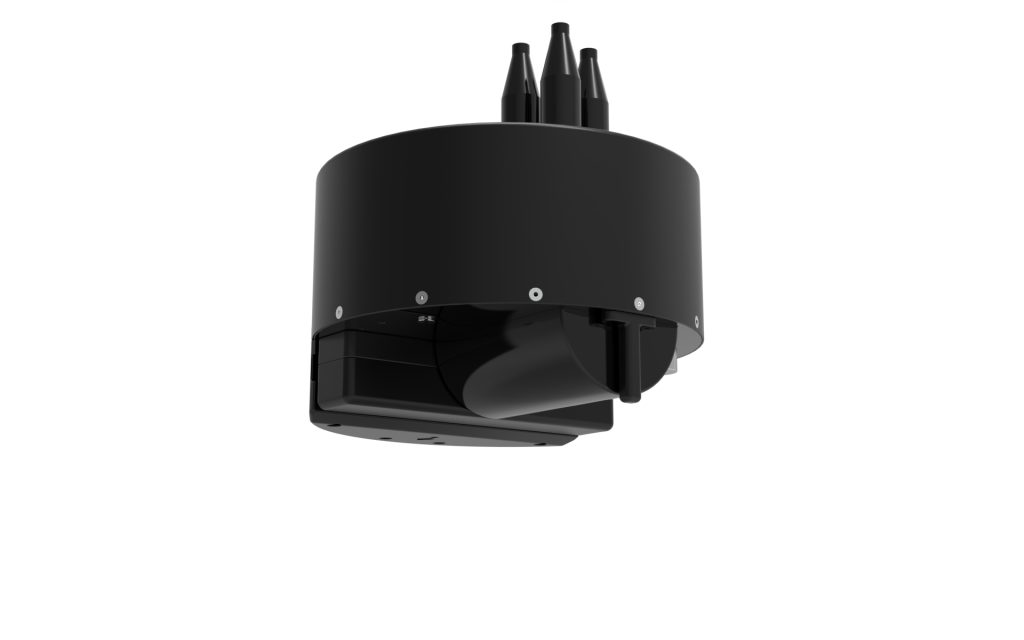

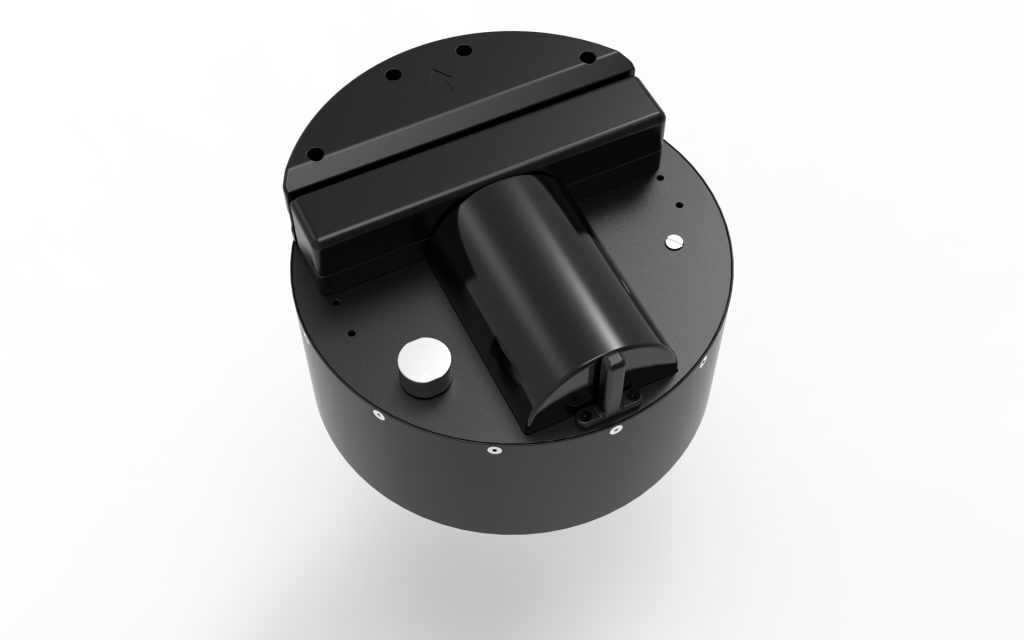

MS400C

Fully All-in-one Multibeam Echo Sounder

MS400C revolutionizes multibeam technology as an all-in-one echosounder integrating SVS, IMU, GNSS and deck unit entirely within its compact sonar head. This innovation exemplifies Hydro-Tech’s leadership in miniaturized intelligent sonar systems. Weighing just 5.55kg, the bathymetric system enables effortless deployment on small USVs while maintaining reliable performance.

Features

Fully All-in-one: Combine transducer, SVS, IMU, GNSS and deck unit into a single compact housing. Require only three cable connections: power/data transmission and dual GNSS antennas. Greatly change the traditional installation method of multibeam bathymetric USV.
Easy Operation: Fewer parts and connecting cables enable simpler and quicker operation. Eliminate deck unit installation and save space for other USV equipment. Solve the problem of heat dissipation inside the USV cabin, even in extreme hot summer.
Plug and Play Convenience: All position relationships of IMU & transducer center and USV GNSS antenna are fixed and set up in the software already. Start to collect data in just 5 minutes with simple installation and auto-survey settings. Reduce complexity and boost survey efficiency.

Specifications

Technical Specifications
Working Frequency	400kHz
Depth Resolution	0.75cm
No. of Beams	512
Working Modes	Equiangular or Equidistance
Across-track Beam Width	1.4°
Along-track Beam Width	2°
Max. Ping Rate	60Hz
Signal Type	CW/Chirp
Swath Coverage	143°
Pulse Width	30μs ~ 8ms
Sounding Range	0.5~200m+*
Max. Working Depth	5m
* Depending on environmental conditions.
Physical Specifications
Transducer	φ220mm×139mm
Transducer Weight	5.55kg (In the air)
Working Temperature	-2° ~ 40℃
Storage Temperature	-20℃ ~ 55℃
Power Supply	DC12V-48V
Power Consumption	60-80W

Platforms

Reservoir Survey
Reservoir Terrain Survey
Lake Terrain Maintenance
Lake Detection
